Use For

1.Remotely give a pulse signal to turn on and turn off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on and turn off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and reverse

Overview

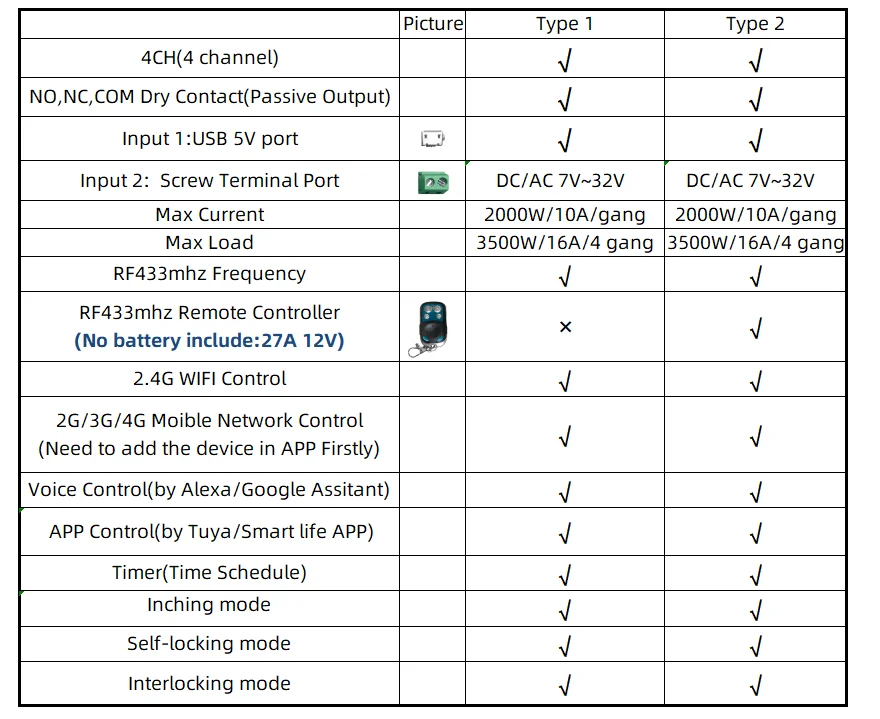

Type 1,2

The RF433 remote controller (receiver) don't include battery

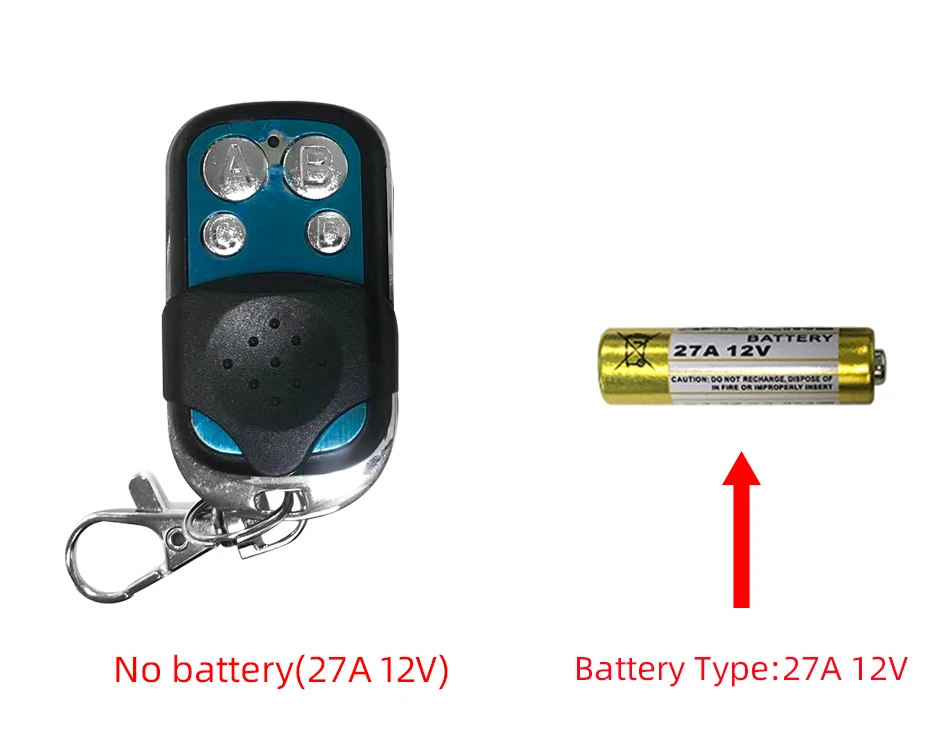

battery type;27A 12V,The picture of the battery is in the end of the page.

The WIFI module can be controlled by fix code EV1527 RF433 remote controller,and it can't controlled by rolling code remote controller.

Note

The relays is passive output(dry contact), No matter how many power you supply in the input, the output don't have any voltage, you also need to supply power in output.
The power supply in the input just can make PCB board work.if you do not supply power in output, the connectted device can't work.

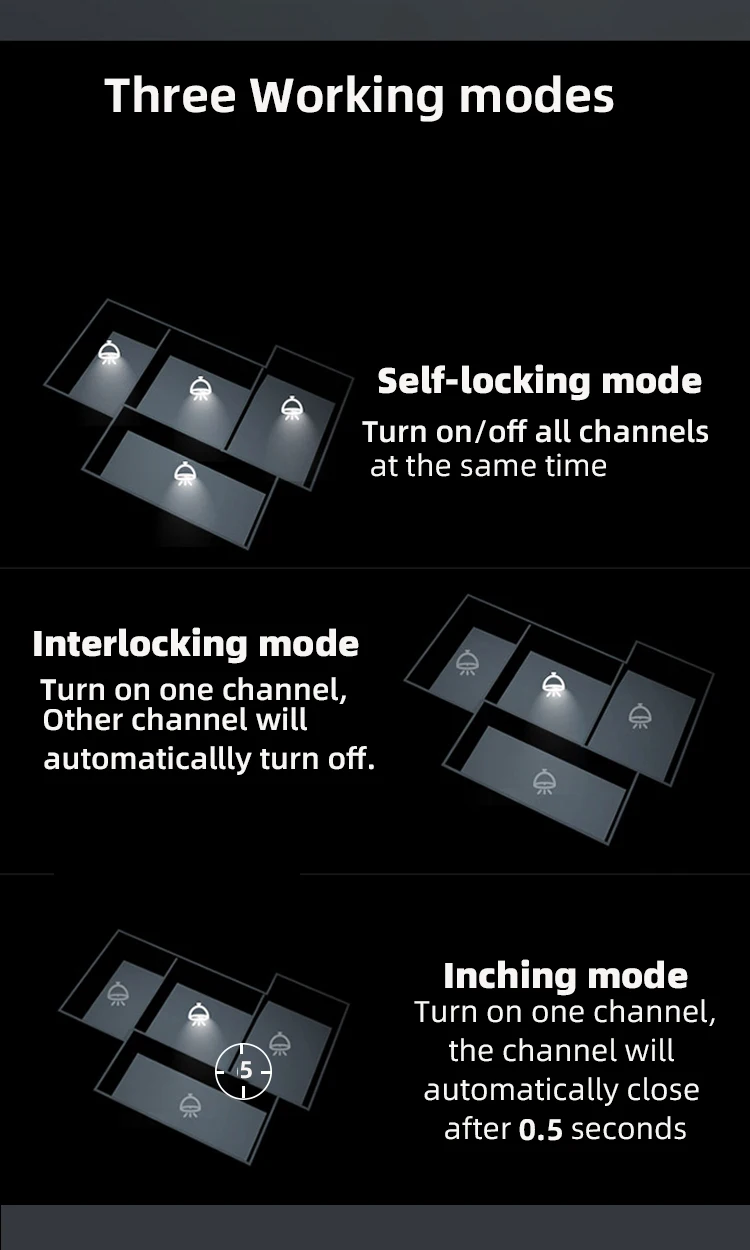

3 Working Modes

1.Self-locking :
each channel could be switched on/off seperately.You also can turn on/turn off all channel at the same time.

2.Interlocking mode :
Switch on any channel , other channels will be switched off automatically .

3.Inching mode(jog mode) :
Switch on one channel,the channel will be automatically closed after 0.5 seconds .Other channel is same as the channel.

If you need to change the mode,you need to press the mode button or active other working mode in the app.

How to Change the Inching Time

If you need to change the inching time.
You need to press the mode button to enter into self-locking mode or interlocking mode,so you can change the inching time on the APP.
The inching time only available in the self-locking or interlocking mode)
The time range is 2-3600 seconds.

Features:

【Two Input Ports】
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.
【Dry Contact/Passive Output】
No matter the power you supply in the input, the output don't have any voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.

Different Ways to Control the WIFI Module

【APP Remote Control】
You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, etc.

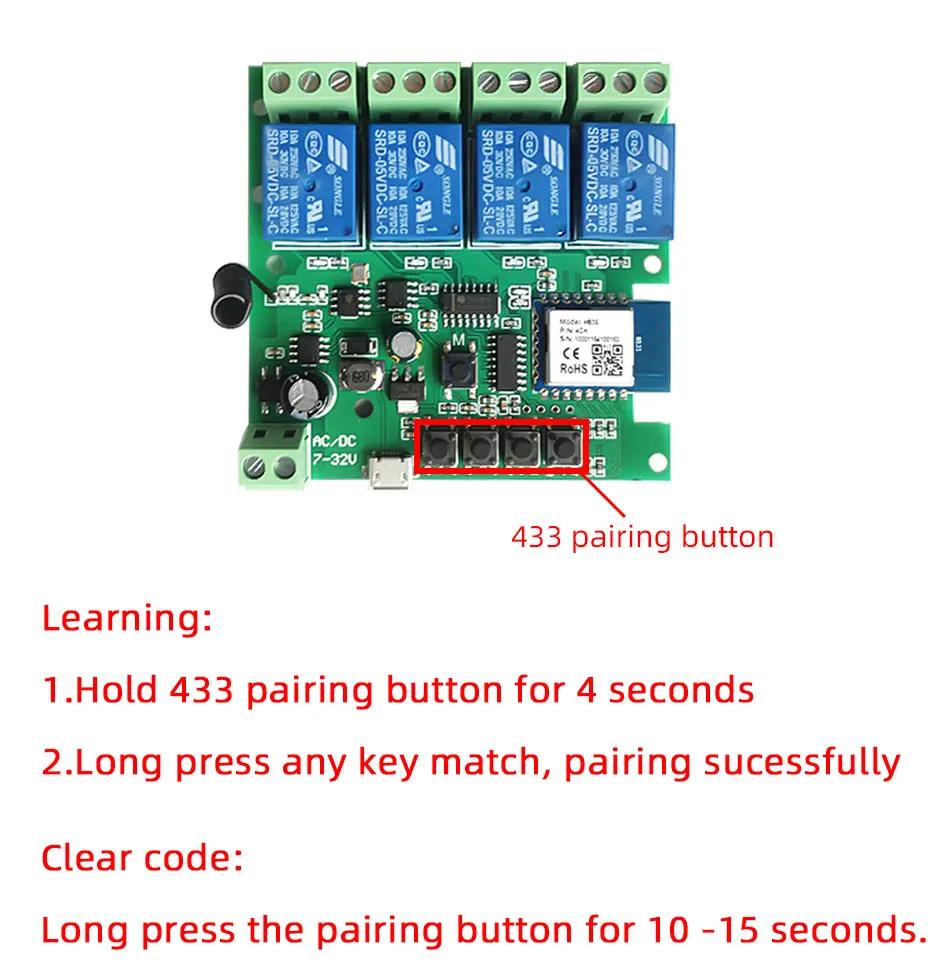

【RF433 Control】The WIFI Module support RF433 Frequency,and you can control the WIFI module by RF433mhz remote controller.
【 Mobile Phone Control】
When you go outside or at home,You could control the module in your smart phone by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
(Note:The router need to online and the WIFI module need to keep a close distance with the router)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn it on/off the connectted home appliances .
【Share Control】
One device can control by Multiple phones,you can share the wifi module with your family member.
【Group Control】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then turn on/off all smart device at the same time.
【Scene Linkage】
Creating smart scene to trigger ON/OFF all WIFI smart home appliances by departure mode, home mode, temperature, humidity, or other conditions.

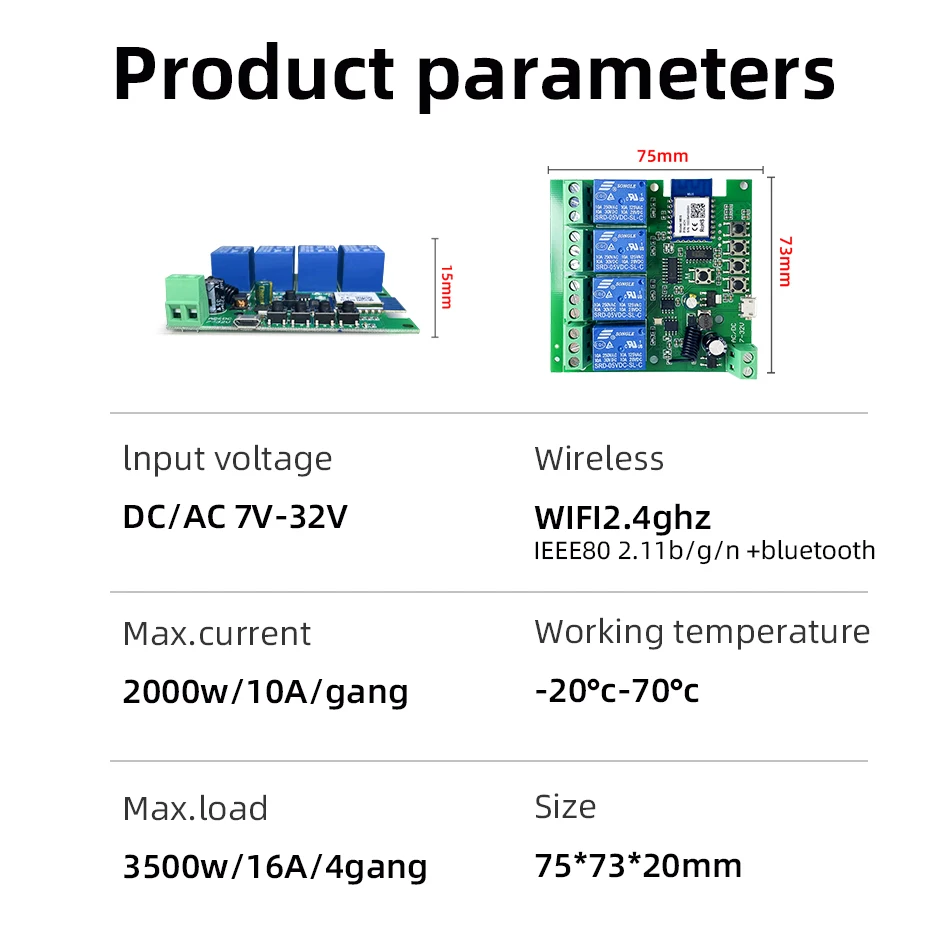

Description:

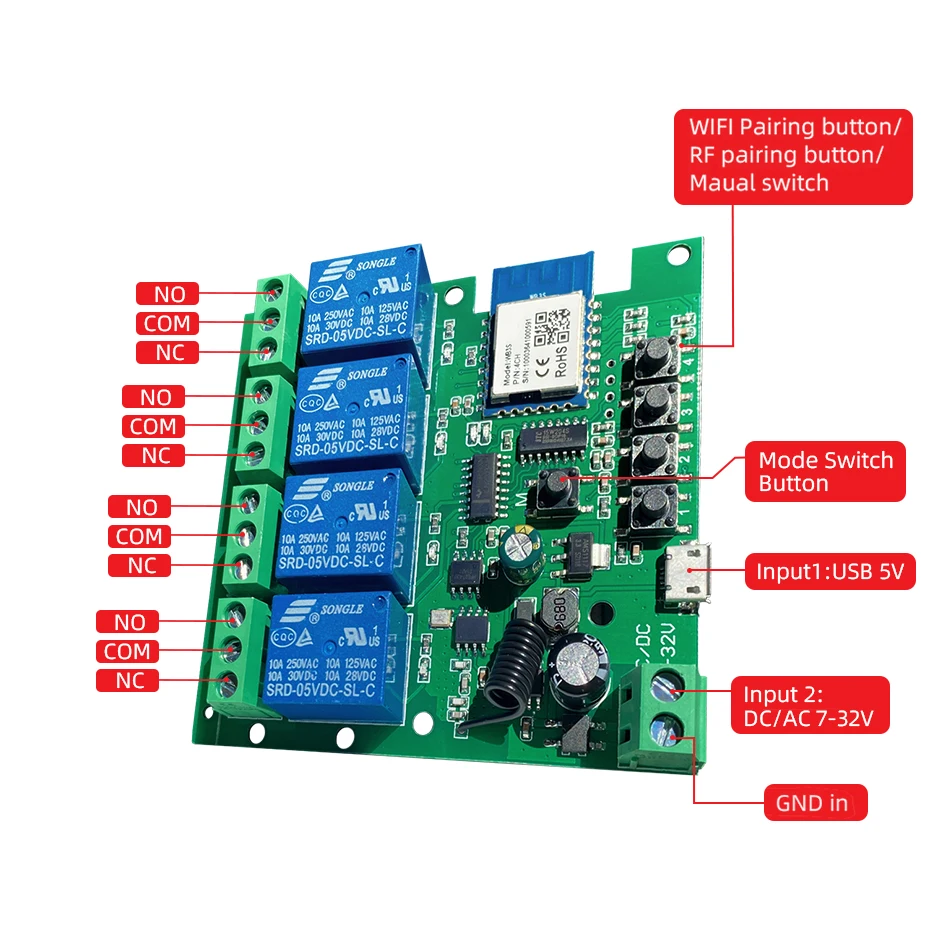

Input1: USB 5V Port
Input 2 :(screw terminal port): DC/AC 7-32V
Output:Passive Output(Dry contact)
Working frequency: 50-60Hz
RF433 Frequency
Working temperature: -20-70℃
Wifi standards/ protocol :IEEE 802.11b/g/n, WIFI 2.4Ghz
Total load power(Output): 2000W/10A/gang
Max Load(Output):3500w/16A/4 gang
Max current(Output):`10A

Size: 75*73*20 mm

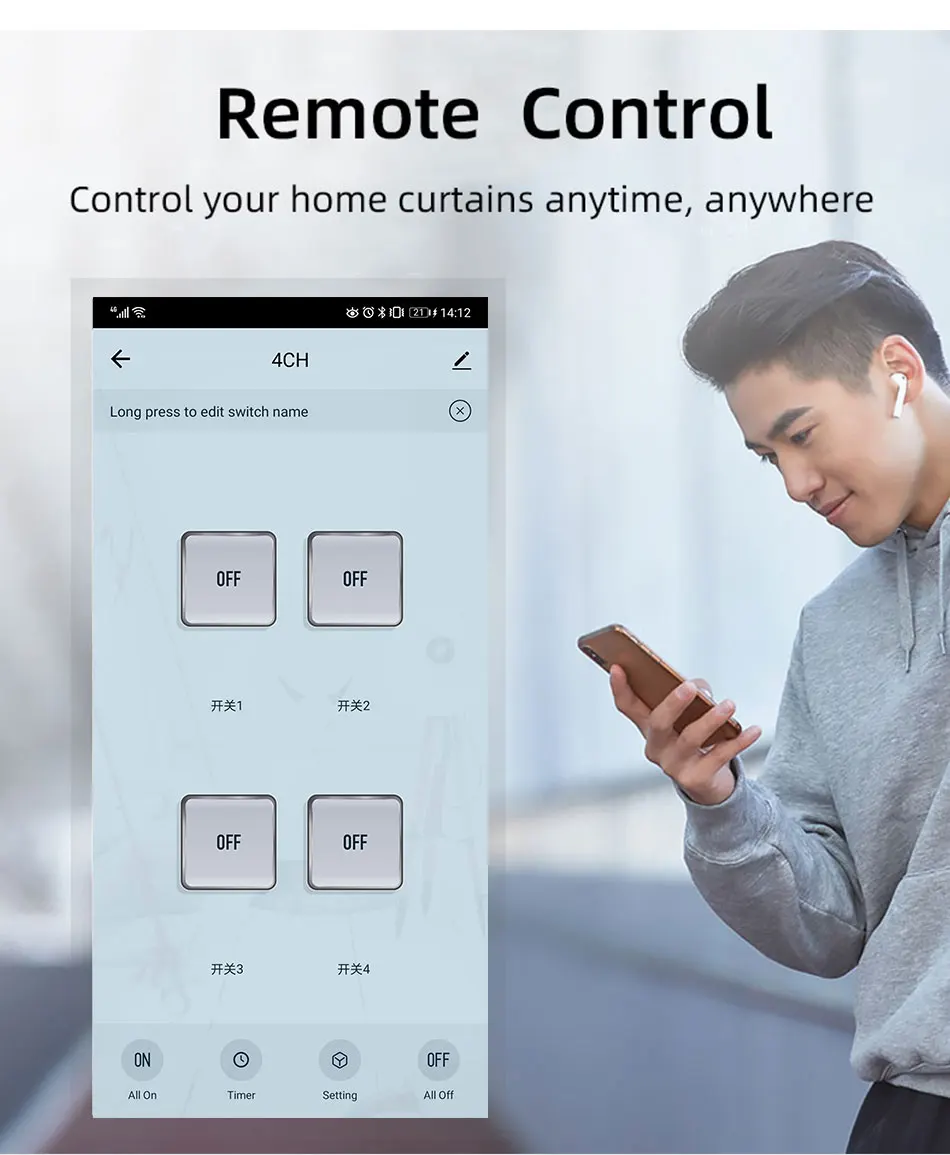

APP Remote Control

You can remote turn on/off household appliances and set timing schedules to turn on/off the household appliances via app Tuya/Smart life anywhere anytime.
such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.

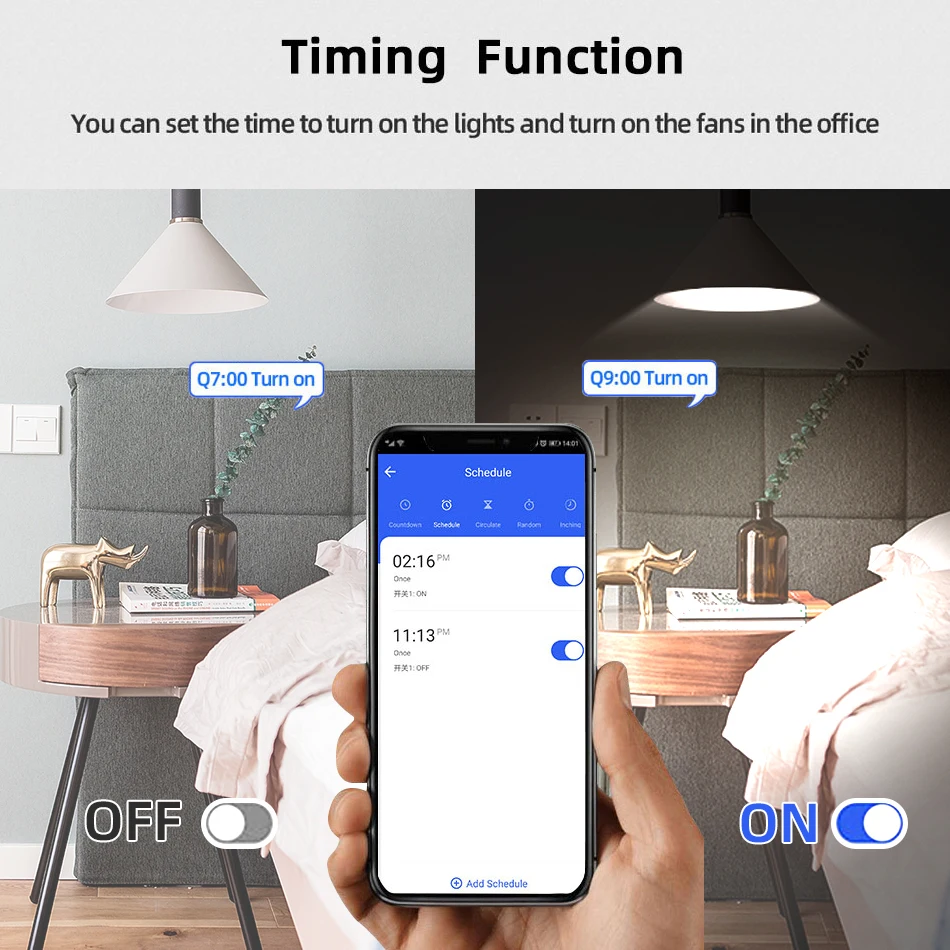

Timer

Via app,you can set time schedules to automatic turn on/off the household appliances , such as lights, celectric curtains ,electric curtains fans. so you can enjoy an high-tech life.

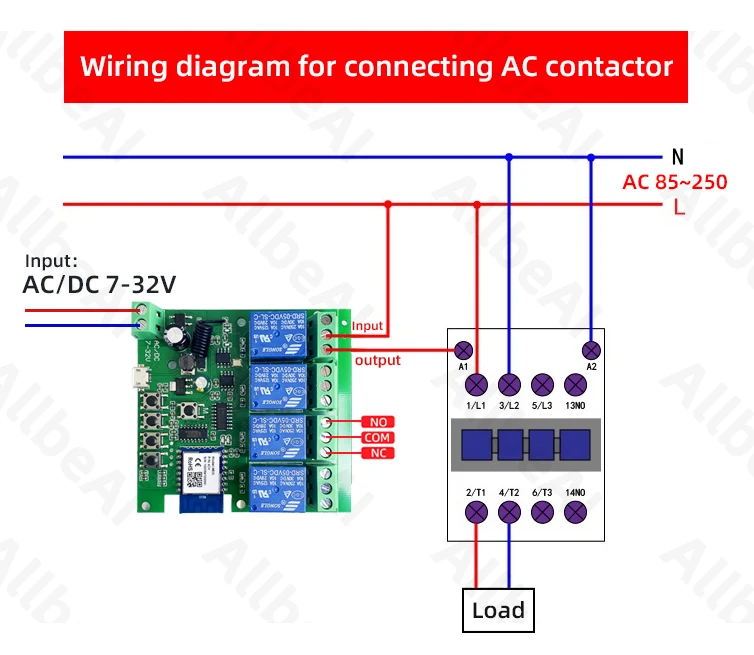

Product Detail

Wiring Diagram for Light/Lamp

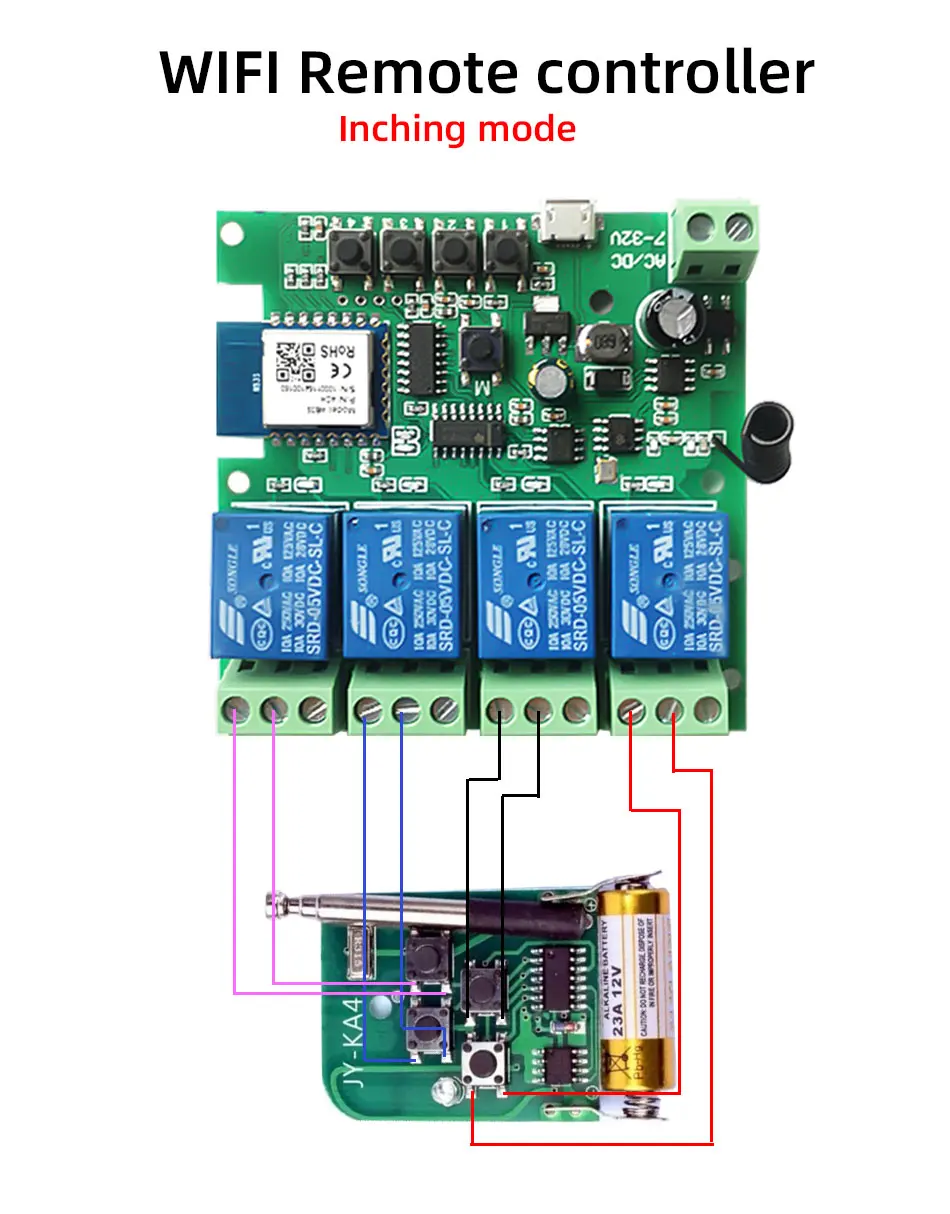

Wiring Diagram for RF433 Remote Controller

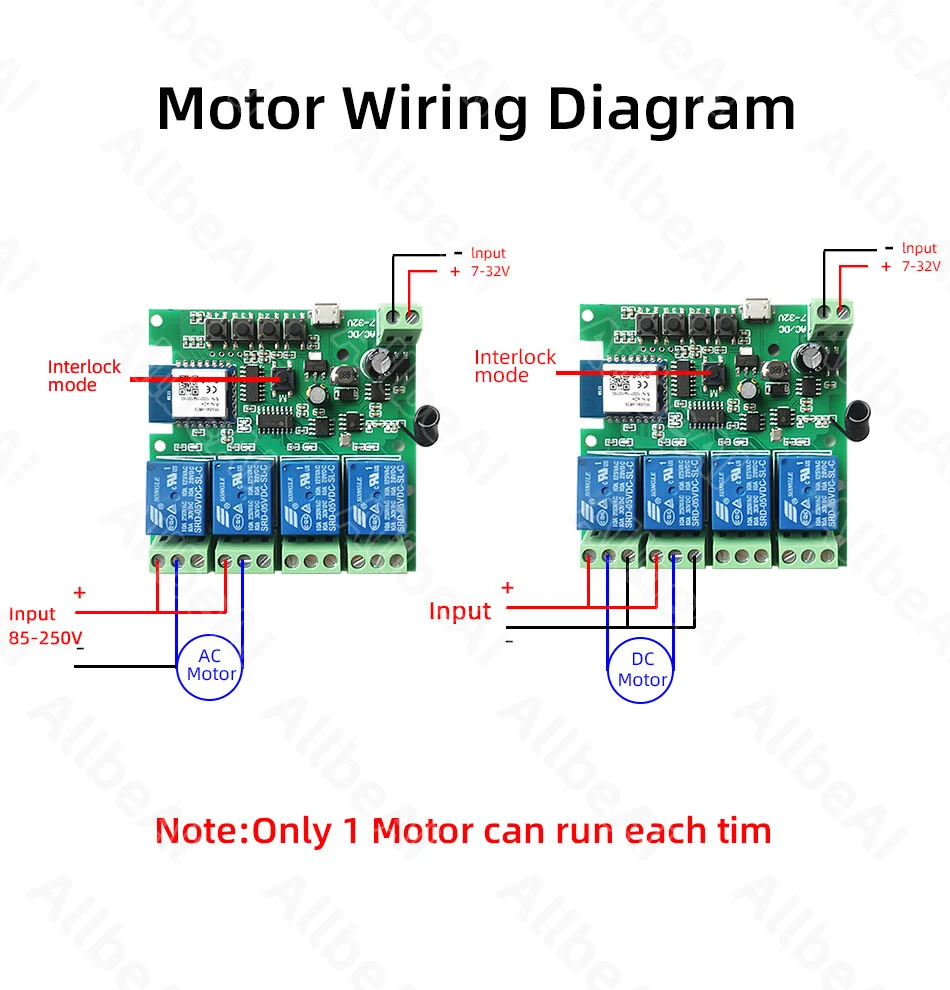

Wiring Diagram for AC/DC Motor

Only one motor can run each time.
You can't run two motor at the same time.
If you need to connect two motor at the same time, you can set interlocking mode to make sure only one motor to run each time.

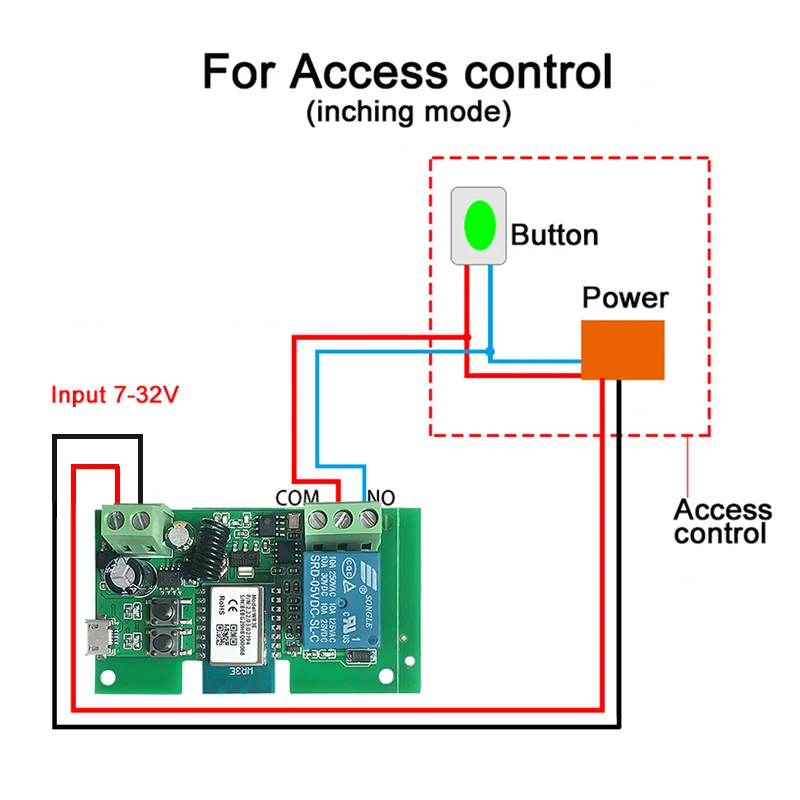

Wiring Diagram for Door Access

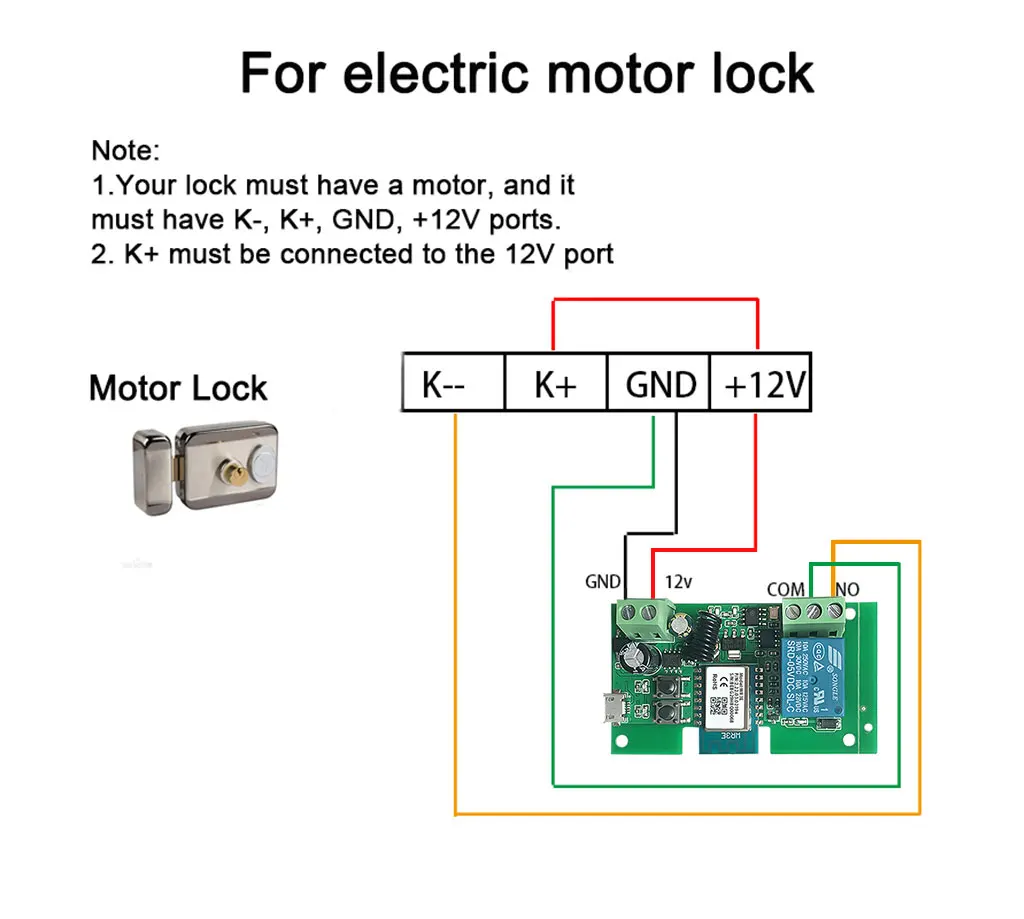

Wiring Diagram for Electric Motor Lock

The Electric Motor Lock must have K-, K+, GND, +12V ports.
2. K+ must be connected to the 12V port
